Outdoors UPS

UPS mounted in a cabinet suitable for outdoor use with electrical protection.

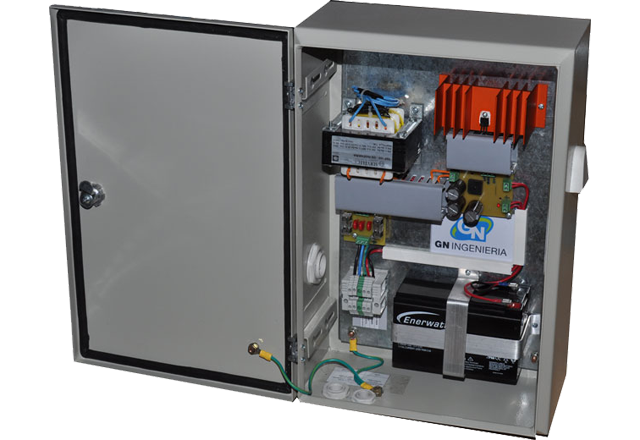

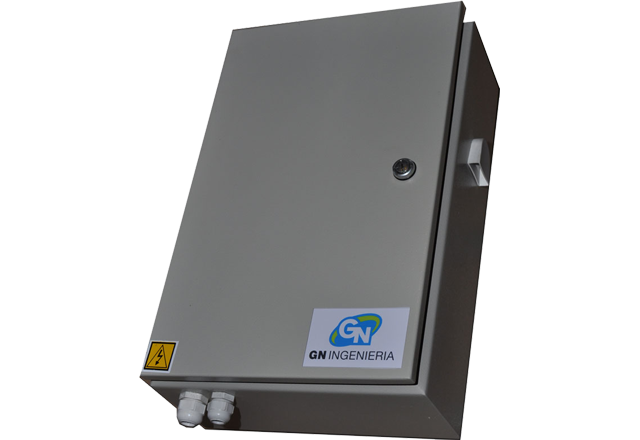

The UPS was designed to be mounted within an outdoor cabinet in order to supply uninterrupted power to external devices.

The UPS Works with a nominal tension of 220Vac or 380Vac. It contains an input protection circuit with anti-surcharge fuses. It contains 12 Vdc batteries with different capacities according to the requirements. The outputs are of 12 or 24 Vdc with various alternatives in power supply.

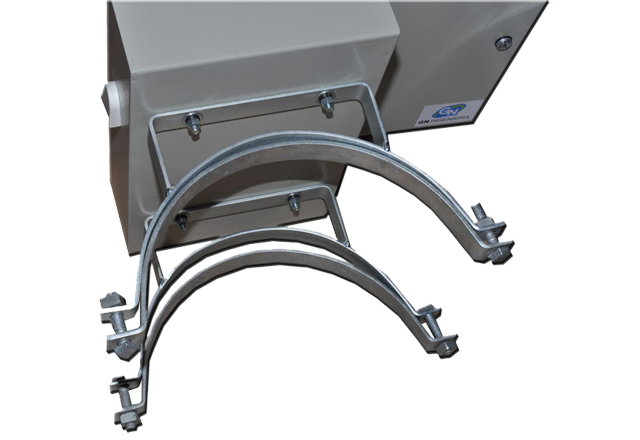

The UPS can be optionally requested with galvanized brackets for external column- mounting.

The cabinets have lateral vents. An electronic temperature control with long- life magnetic levitation vents can be added.

[Back] [More Info.]
UPS para Exterior

Main features and benefits:

  • Outdoor UPS.
  • ON-LINE type UPS with 12Vdc or 24Vdc outputs with different power capacities.
  • External power supply of 220Vac or 380Vac.
  • Surcharge protection with interchangeable fuses.
  • 12V internal batteries with different capacities.
  • External connection terminal blocks.
  • Lateral vents.
  • Optional: Galvanized brackets installation for column-mounting.
  • Optional: electronic forced ventilation with magnetic levitation fans (long life ~ 10 thousand hours).
    • ×
    ×
    ×
